Temperature based fan speed control using arduino tinkercad temperature based fan speed control and monitoring using arduino tinkercad temperature sens. Even though the arduino is a digital tool it can interpret signals from an analog in. In this post we have described how to design temperature based fan speed control monitoring with arduino and lm35 temperature sensor. Temperature based fan speed control monitoring with arduino.

Hacettepe university ele417 temperature based fan speed controller. Program is simple and straight forward it basically check the temperature and compare between two temperature range 25 0 c to 60 0 c. The temperature sensor lm35 is connected with the arduino with an analog input pin a0 the temperature is an analog signal while the fan is connected with a pwm pulse width modulation pin 6 which controls the speed of the fan with respect to the output temperature using a function map in the arduino ide. If the temperature is less than 25 c then the dc fan will remain off and details will be displayed on the lcd.

The temperature based fan speed control system can be done by using an electronic circuit using an arduino board. In this project you will turn the arduino into a thermometer. The microcontroller controls the speed of an electric fan according to the requirement allows dynamic and faster control and the lcd makes the system user friendly. Now arduino board is very progressive among all electronic circuits thus we employed arduino board for fan speed control the proposed system is designed to detect the temperature of the room and send that information to the arduino board.

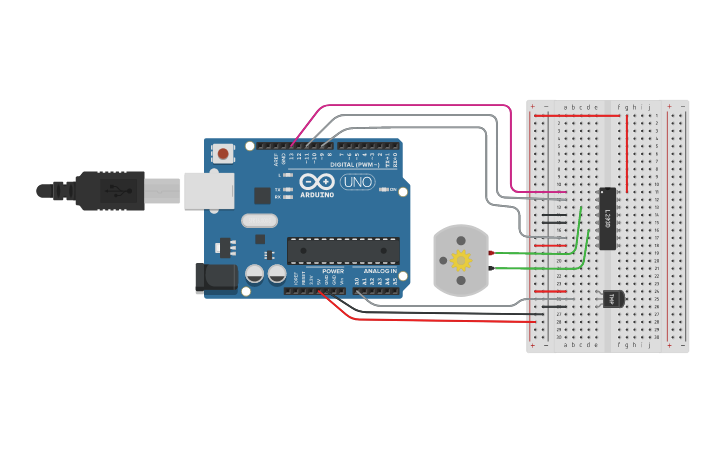

Temperature controlled fan using arduino. We are using l293d motor driver ic for controlling dc fan motor with arduino. The components needed. Control automatic speed fan using temperature lm35 based on arduino uno 19.

Speed of fan depends upon temperature which we map between 32 and 255 and fan speed is display which is map between 0 to 100 as shown in below. Software code of arduino based temperature controlled fan is written in arduino programming language and compiled using arduino ide. Temperature based speed control of fan using arduino. It can drive 2 dc motors and we can also control the speed by providing pwm signals.

In the program we have set four different conditions to run the dc fan. Tmp36 temperature sensor with arduino in tinkercad.
