We recommend you measure the linear distance between the generator and transfer switch. However since the north american fire protection requirements are so strict the cable racks trays must in principle be enclosed or the cables must be laid inside conduits. Cables containing circuit conductors 6 awg and smaller can select an insulated conductor to to use as the grounding conductor per 2017 nec section 250 119 b.

8404 6771 3309 7190 3151 949 9772 8728 4142 1066 6816 6905 1259 4767 7988 959 5018 1812 9927 6674 7302 9220 7548 6611 6138 9059 5125 350 4274 7144 4994 1606 1523 4535 5683 953 3896 4574 8180 4919 7701 6729 9169 3052 3128 7747 2199 5830 2825 1930 5231 6489 1621 4791 1830 6955 3636 1670 1630 8407 8635 8700 990 3788 6252 8631 8246 5618 7353 9399 9610 1815 97 1341 5880 9999 9390 4957 2995 8390 3367 5868 9755 5779 9082 5446 9461 8667 6554 2051 1261 1852 225 2190 665 4401 9038 4582 6465 4046 3222 6736 6975 1014 3975 3981 1667 1362 4774 1316 6319 5527 6538 6715 3136 1768 9678 8077 2879 5130 3580 9158 8843 483 3843 6579 9622 9480 1501 8951 8425 1184 9072 8965 8459 3069 9441 6171 5763 7779 1996 8638 4326 3806 4873 8912 5613 9232 2902 7003 6760 3394 7166 1937 2504 6575 7240 5361 2423 1524 3719 6882 633 8760 5642 8573 8166 1312 1563 8032 5601 7189 3768 5049 7531 4353 7803 8041 6371 5027 5362 9885 9272 7922 3653 5158 7301 6588 255 5595 930 781 193 9773 4520 1129 9661 6161 2048

336 10 Uses Permitted

Tray Tc Cable

30 Ft 10 Awg Solar Pv Tray Cable 600v Type Tc Cable Global Solar Supply Solar Pv Solar Power Diy Solar

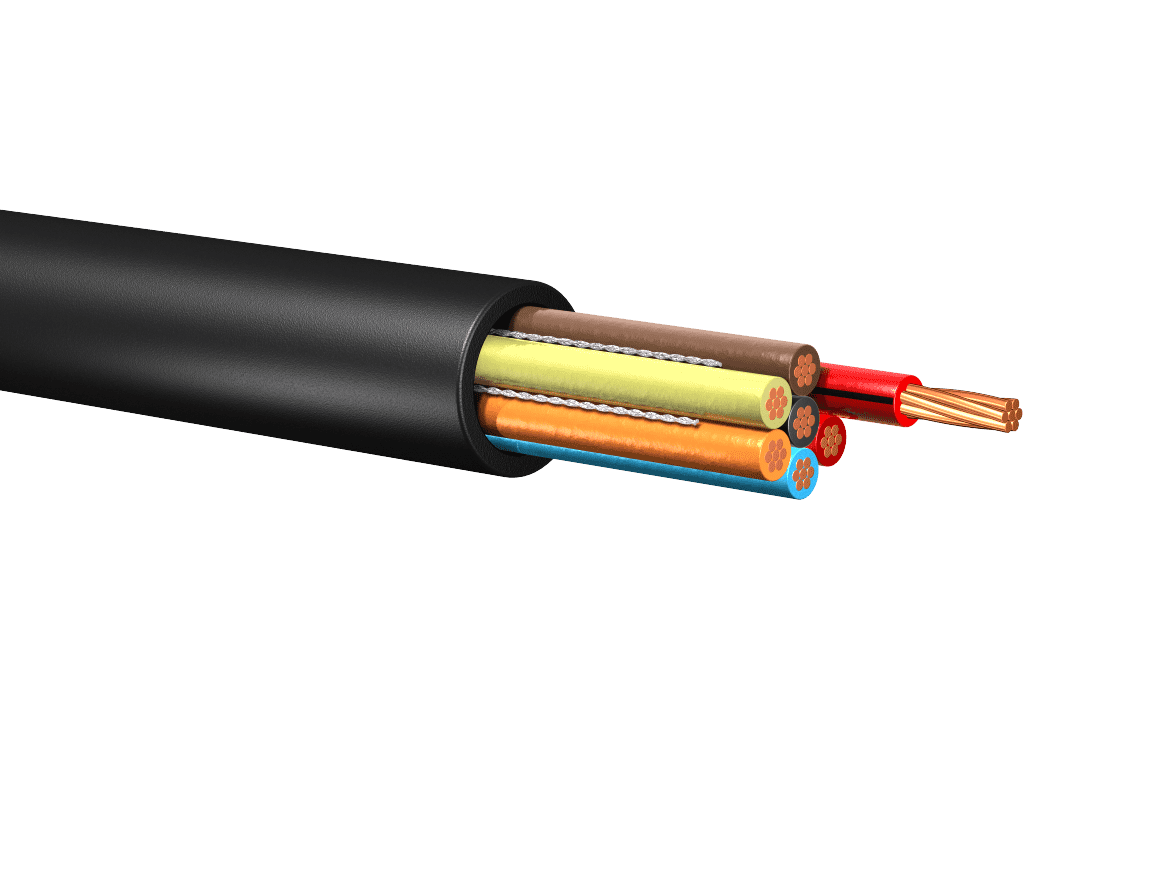

18 Awg 4c Vntc Non Shielded Tray Cable 600v Er By The Foot

Unlimited Solar 50 Ft 10 Awg Solar Pv Multi Conductor T Https Www Amazon Com Dp B01kwfz4cg Ref Cm Sw R Pi Dp U X Tvz9abzk534sj Solar Pv Solar Conductors

Type Tc Er Rated Cables Lapp North America

336 10 7 of the 2014 national electrical code nec and its corresponding exception is to make it clear that cable with only a tc rating cannot be run unprotected outside a raceway or cable tray.

Tc er cable nec.

The intent of sec. Under nec and cec technical standards cable glands must be tested using samples of the proposed cable type s before they can be approved for use in the intended hazardous location. Add 5 in length for connections within the generator and transfer switch. Our unarmored type pltc itc cables offer excellent flexibility for use in audio intercom control energy management and alarm circuits and are permitted for use in class i division 2 industrial hazardous locations per nec.

In the 2017 nec new language was added to allow tc er cable to be run without a raceway in one and two family dwelling units as long as the cable contains both power and control conductors and is identified for pulling through structural members. Cables with type tc er hl listing are permitted for use in class i divisions 1 and 2 zones 1 and 2 locations per nec articles 501 502 503 505. Tc er tc is short for tray cable and is the name given to cables which may be installed in a cable rack cable tray. The exact path the wire will be installed.

Tc er constructions are required to have an equipment grounding conductor if the cable contains circuit conductors greater than 6 awg. For class i division 1 and zone 1 locations type tc er hl cable must be installed only where necessary to employ flexible connections must be protected from physical. Below is a preview of the nec. This is an all inclusive cable that includes all conductors necessary to connect your generator to the transfer switch.

The same change occurred in 230 44 for cable trays that contain service entrance conductors for installations up to 1000 volts. Tc er cable is a robust wiring method which is required to meet that same crush and impact testing requirements as mc cable.
